equipment
Powder-coated frame (40×40), 3H built-in cistern, flow rate reducer, empty pipe for connection to toilet with flushing function, toilet connection kit, fixing material, foot brake for height adjustment, connection water flow R½ back and top, toilet connection elbow DN90 (depth adjustable) made of PP, eccentric coupling piece DN90/100 made of PP
technical data
factory set small discharge approx. 3L
small discharge adjustment range approx. 2–4 l
factory set full discharge approx. 6L
full discharge adjustment range approx. 3.5–7.5 l
max load 400kg
max range 700mm
note

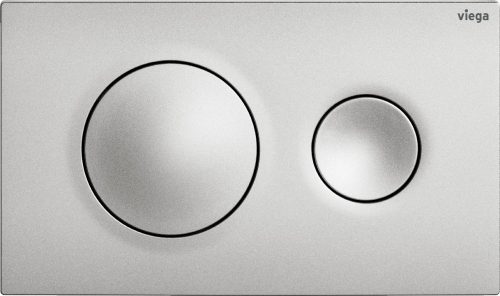

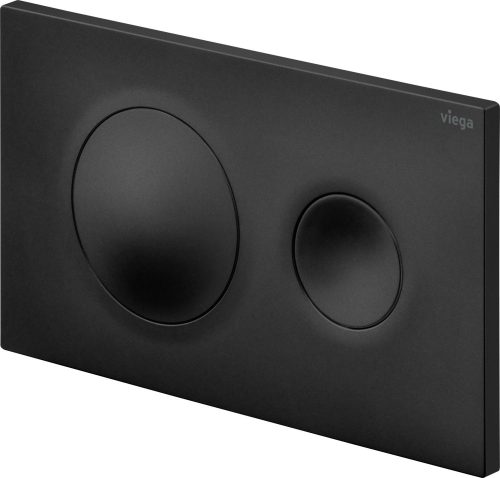

For pushbuttons and accessories: toilet and urinal pushbutton product group for Prevista.
